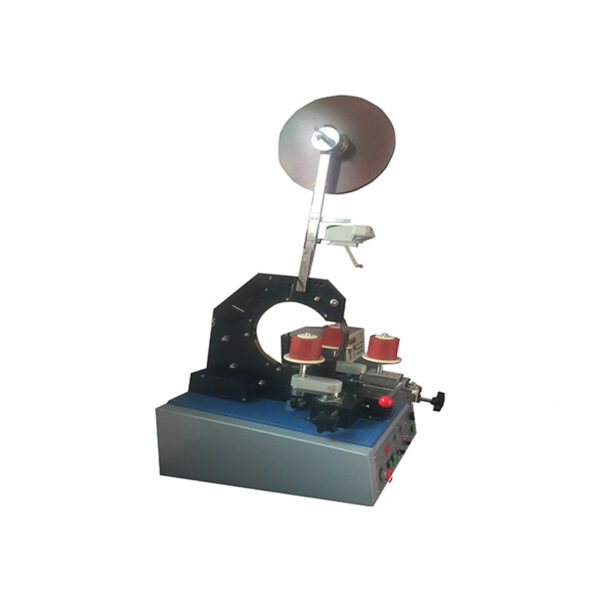

Taping Machine For Winding Polyester Film

Short Description:

Inquiry

Contact Us

    Category:

    soiuh865jh

    Application:

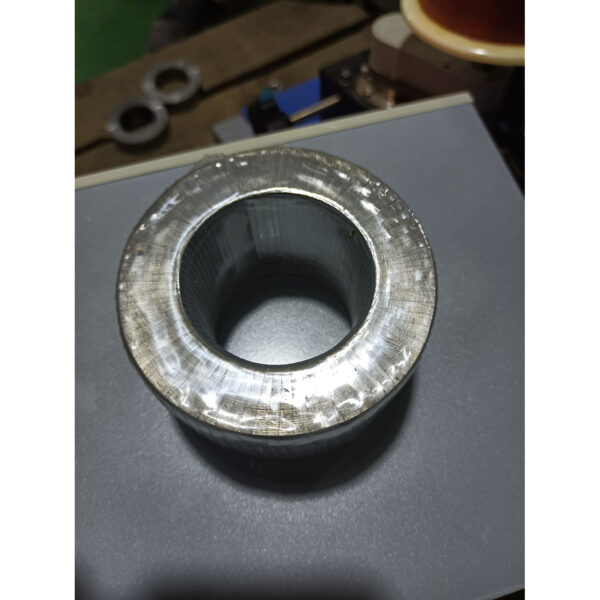

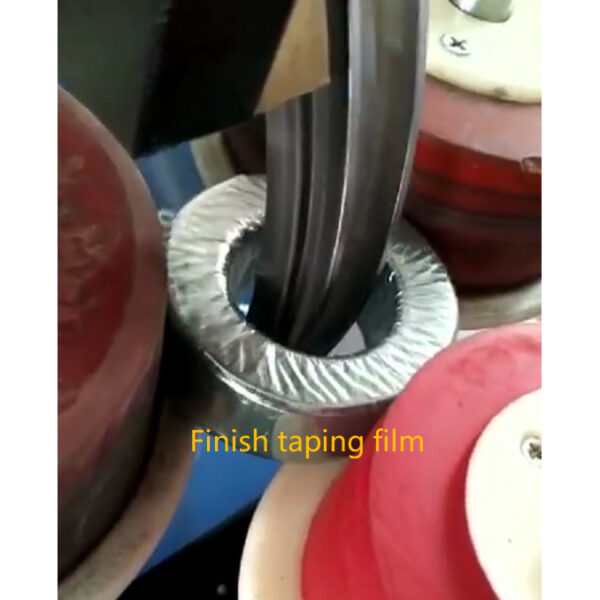

    Taping machines used for wrap polyester film on toroidal coil,oval coil and rectangular coil.it will palce insulating tapes on cores and windings in closely controlled fashion.they are fast and will work with polyester,polyimide and aramide tapes as well as copper shielding tapes in widths from 6 to 16mm or as specified.Tape is loaded onto the magazine and cut automatically and the winding speed increasaed in order to finish the job in Min time,the magazine maybe exchanged in minutes to accommodate different tape widths.

    Specifications:

    VOL-0825  taping machine Max winding speed 250 rpm
    tape width 8(10,12,15)mm tape spacing proportional linkage
    Max OD 45-200mm supply voltage AC220V 50Hz
    Min ID 25 mm Machine size 550*500*1100
    Max height 80mm machine weight 100KG
    Storage      capacity 29 sets HS　code 8479811000
    VOL-1030 taping machine Max winding speed 250 rpm
    tape width 10(10,12,15)mm tape spacing proportional linkage
    Max OD 50-200mm supply voltage AC220V 50Hz
    Min ID 30mm Machine size 550*500*1100
    Max height 80mm machine weight 100KG
    Storage      capacity 29 sets HS　code 8479811000
    VOL-1235 taping machine Max winding speed 250 rpm
    tape width 12(10,12,15)mm tape spacing proportional linkage
    Max OD 50-200mm supply voltage AC220V 50Hz
    Min ID 35 mm Machine size 550*500*1100
    Max height 80mm machine weight 100KG
    Storage      capacity 29 sets HS　code 8479811000
    VOL-1640 taping machine Max winding speed 250 rpm
    tape width 15(10,12,15)mm tape spacing proportional linkage
    Max OD 60-200mm supply voltage AC220V 50Hz
    Min ID 40 mm Machine size 550*500*1100
    Max height 100mm machine weight 100KG
    Storage      capacity 29 sets HS　code 8479811000
