Dry-Type Transformer High-Voltage Vertical Winding Machine

Machine uses:

The high-voltage vertical winding machine for dry-type power transformers is a specialized winding equipment designed for the high-voltage coils (continuous and disc types) of dry-type power transformers. It is divided into pit-type and ground-type according to the installation method and is the core equipment for the manufacturing of large dry-type transformers.



Machine composition:

1. Base and Spindle System: Vertical spindle + coil plate/clamping mold, load capacity up to 10–25 tons, frequency conversion + servo drive, stepless speed adjustment from 0–10 rpm, coil plate height adjustable to accommodate different coil heights;

2. Tension and Wire Laying Unit: Magnetic tension/pneumatic tension control (accuracy up to 0.01 N), automatic wire laying + layer insulation synchronous feeding, preventing wire scratches and ensuring uniform interlayer spacing;

3. Electrical Control System: PLC + touch screen, supports program storage, forward and reverse counting, power failure memory, UPS protection; optional online monitoring (tension, speed, number of turns);

4. Safety and Auxiliary Devices: Retractable pit cover, guardrail, emergency stop circuit, cooling/dust removal system.





 Technical parameters :

– Voltage: 400 V AC

– Total Installed Power: 5 KW

– Weight: 2700 kg

– Winding Diameter: 190 mm to 900 mm

– Aluminum Wire Range: 1.00 to 7.00 mm

– Copper Wire Range: 0.75 to 5.00 mm

– Maximum Coil Height: 1800 mm

– Minimum Coil Height: 650 mm

– Overall Dimensions: 2190 x 2260 x 2850 (H)

– Control Cabinet Dimensions: 800 x 550 x 1600 (H), Weight: 150 kg

Advantages:

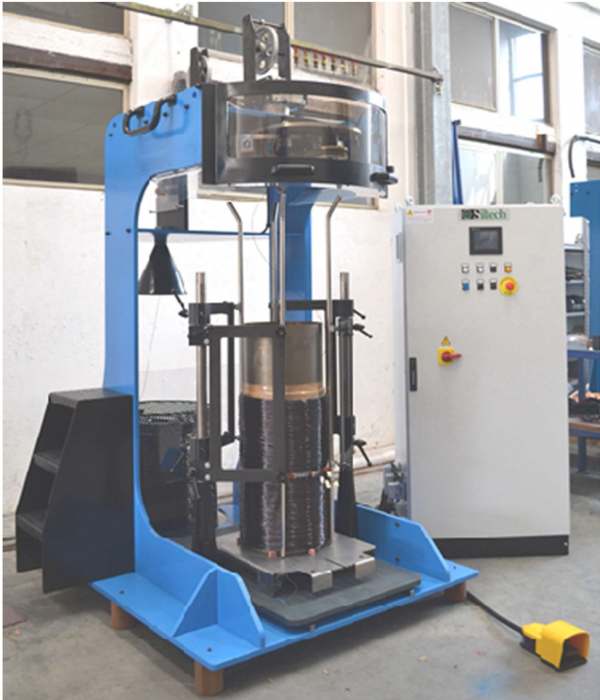

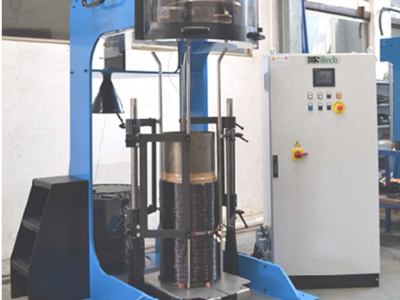

• Control System: The control cabinet on the right side of the Vertical Coil Winder for Dry-Type Transformer HV Coils integrates a PLC and a touch screen, supporting programming and real-time monitoring of parameters such as the number of turns, wire pitch, and tension, ensuring winding accuracy.
• Applicable Scenarios: The Vertical Winding Machine for Dry-Type Transformer High-Voltage Coils is mainly used for continuous or disc-type high-voltage coil winding of 10kV–35kV dry-type power transformers, and can also be used for coil production of special transformers (such as rectifier and traction dry-type transformers).
• Operating Features: The HV Continuous Coil Winding Machine is equipped with a foot switch for easy operator control of start and stop; the top-mounted wire feeding and guiding mechanism ensures the wire is wound evenly and stably onto the mold.
• Structural Layout: TheVertical Coil Winder for Dry-Type Transformer HV Coils adopts a vertical gantry structure with a vertically arranged main shaft, enabling the winding of high-voltage coils that are large and heavy, avoiding coil deformation caused by gravity during horizontal winding.
