Full Automatic core winding machine



Machine uses:

Transformer Wound Core Making Machine are core specialized equipment in the manufacture of power equipment. Their main purpose is to automatically wind magnetic materials such as silicon steel sheets and amorphous alloy strips into cores of various shapes. They are key equipment for producing electromagnetic devices such as high-efficiency transformers, motors, and instrument transformers.



Machine composition:

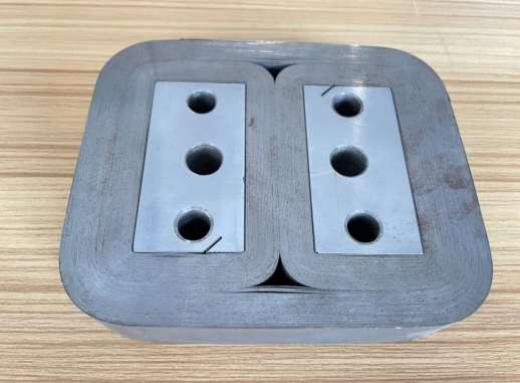

The transformer Wound Core Making Machine is a special equipment used to automatically wind silicon steel strips, amorphous alloy strips or CRGO strips into high-precision closed wound cores for distribution transformers, power transformers and instrument transformers.

TheWound Core Winding Machine for Transformer is equipped with the latest  Panasonic PLC system and WEINVIEW  touch screen to control the decoiler and core winder. The decoiler feeds the materials to core winder, the material through the guider unit, tension unit, then manually take the material into the slot on the mandrel, and then the motor drive the mandrel to wind materials into core, then manually welds the end  layer for the core, at  last, take out the core with mandrel together.



 Technical parameters :

A)  Core Winder

Model	RC500-150M
Shape	Toroidal cores, Rectangular cores, Step cores,
Mandrel Diameter Range	Ø 50- Ø400mm (Diagonal Line)
Core ID (Min)	Ø50 (Diagonal Line)
Core OD(Max)	Ø500mm (Diagonal Line)
Material Width	10-150mm
Material Thickness	0.18-0.5mm
Accuracy	< 0.3mm
Voltage	380VAC, 3Phase,50/60Hz or Optional
PLC	Panasonic
HMI	Weinview
Air pressure	6kgf/cm²
Power	6KW
Machine Size (LxWxH)	2500x1100x1300mm
Machine Weight	1550KG
Interface Language	English/Chinese

B)High SpeedDecoiler

Model	RC500-150M
Expansion	Manual
Max. Coils OD	1000mm
Expand Range ID	450-508mm (Standard)
Max. Coils Loading	1000kg
Max. Feeding Speed	100m/min
Size (LxWxH)	1500x750x1410mm
Weight	850KG





Advantages:

• Full Automatic core winding machine features stable and precise winding tension control.
• Toroidal core winding machine boasts high production efficiency, low material loss, and excellent product consistency.
• Wound core winding machine is controlled by a PLC touchscreen, making operation simple.
• Transformer Wound Core Making Machine is adaptable to various core specifications and strip widths.
• Amorphous Alloy Wound Core Machine can achieve stepped joint winding, reducing no-load losses.
