Monolayer low pressure foil winding machine

Machine uses:

Single-layer foil winding machine is mainly used for winding low-voltage foil coils of power transformers. It can wind copper foil or aluminum foil into single-layer foil coils. It can also be used for winding foil coils of reactors and other electrical equipment.

Machine composition:

Tension-controlled single-layer foil winder consists of a foil unwinder, a layer insulation unwinding device, a winding machine, a welding device, a foil shearing device, and an electrical control system.



 Technical parameters :

No.	Items	BRJ-400-1	BRJ-600-1	BRJ-800-1	BRJ-1000-1	BRJ-1200-1	BRJ-1400-1	BRJ-1600-1
1	Coil processing range
1.1	the axial length	150～400	150～600	150～800	150～1000	150～1200	150～1400	150～1600
1.2	the axial length   (including lead)	750 mm	950 mm	1250 mm	1450 mm	1650 mm	1850 mm	2050 mm
1.3	Outer diameter (including row)	φ1000	φ1000	φ1000	φ1000	φ1000	φ1000	φ1000
1.4	Outer diameter	φ800	φ800	φ800	φ800	φ800	φ800	φ800
1.5	The left coil leads length	300 mm	400 mm	400 mm	400 mm	400 mm	400 mm	400 mm
2	Coil material
2.1	thickness(mm)	copper foil：single-layer0.3～2; double-layer 0.5~1.8
		Aluminum foil:  single-layer 0.5～2.2; double-layer 0.5~2.0
2.2	material coil diameter (mm)	φ460／φ520	φ460／φ520	φ460／φ520	φ460／φ520	φ460／φ520	φ460／φ520	φ460／φ520
2.3	Max material coil diameter (mm)	φ900	φ900	φ900	φ900	φ900	φ900	φ900
3	Uncoiler  1 set
3.1	loading tube length	450	650	850	1050	1250	1450	1650
3.2	bearing cylinder expanding range	φ460／φ520 mm	φ460／φ520 mm	φ460／φ520 mm	φ460／φ520 mm	φ460／φ520 mm	φ460／φ520 mm	φ460／φ520 mm
3.3	bearing cylinder loading (Max)	1500kg	2000kg	2500kg	3000kg	3500kg	3500kg	3500kg
3.4	expansion force	5000N	6000N	8000N	8000N	10000N	12000N	12000N
3.5	Expanding pressure	0～0.6Mpa	0～0.6Mpa	0～0.6Mpa	0～0.6Mpa	0～0.6Mpa	0～0.6Mpa	0～0.6Mpa
4	Winder
4.1	work torque (Max)	6000N	8000N	10000N	10000N	10000N	10000N	12000N
4.2	wind power	7。5 KW	11 KW	11 KW	11 KW	15KW	15 KW	18.5 KW
4.3	Dimension of winding axis	60×60×770 mm	60×60×970 mm	60×60×1270 mm	70×70×1470 mm	70×70×1670 mm	70×70×1870 mm	70×70×2070 mm



Advantages:

• Precise Tension Control: The Single-layer copper foil winding machine employs advanced tension control technology, such as active tension application by the motor. Tension can be digitally set and displayed via a touchscreen, maintaining constant tension during winding, stopping, and unwinding to ensure coil winding quality.
• High Correction Accuracy: The Transformer foil winding machine typically utilizes photoelectric sensors for non-contact detection of the foil edge, with servo dynamic response, achieving a correction accuracy of approximately ±0.5mm. It can adapt to foils of varying thicknesses.
• High Production Efficiency: The CNC single-layer foil winder automatically completes a series of operations including foil unwinding, correction, welding, winding, and cutting. Compared to manual winding, this significantly improves production efficiency and is suitable for mass production.

• Easy Operation: Parameter settings for the Low-voltage electrical single-layer foil winding machine are made via a touchscreen. Operators can operate the machine after simple training, requiring relatively low skill levels.
• Wide Applicability: The Tension-controlled single-layer foil winder can adapt to copper or aluminum foils of varying thicknesses and widths. It can also wind coils in various shapes, such as round, rectangular, and elliptical, covering commonly used specifications for low-voltage transformers.

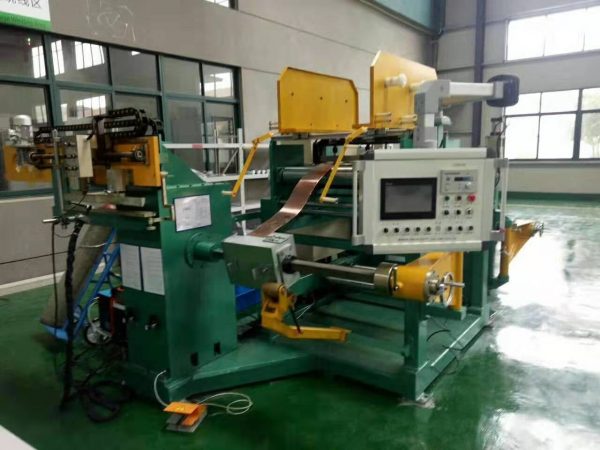

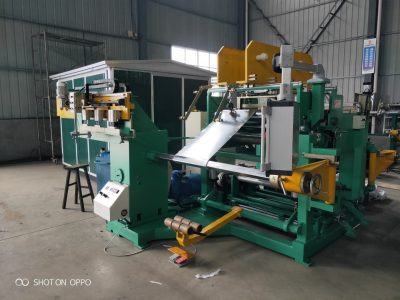

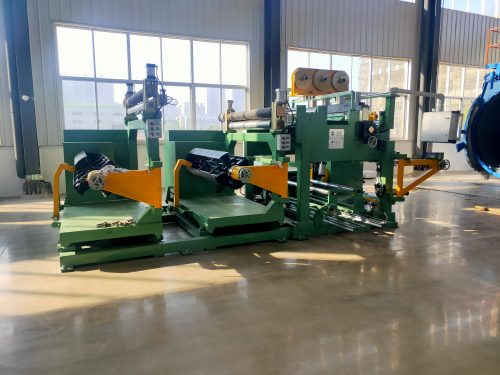

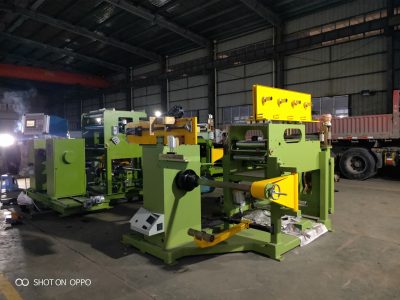

Product Images：
