AVOL-250C-80 Fully Automatic Core Winding Machine

Short Description:

Application:Used for winding toroidal core made from grain oriented steel or non-oriented steel for small transformers, transmitters, instrument and voltage transformers, chokes and variable voltage transformers.

Inquiry

Contact Us

    Category:

    Application

    Used for winding toroidal core made from grain oriented steel or non-oriented steel for small transformers, transmitters, instrument and voltage transformers, chokes and variable voltage transformers.

    pro1
    pro2

    APG Machine Video

    Toroidal Core Winder Features

    1)  Automatic feeding, clamping and hooking, winding, cutting and punching, welding and receiving the core with high speed and efficiency.

    2)  PLC system and HMI touch screen to control servo motors, moving parts and pneumatic components .

    3)  Continuous feeding, adjustable tension, accurate counting, closed-loop monitoring, automatic alarm.

    4)  Automatic laser welding with perfect welding spot, and pick up cores by machine hand.

    5)  Equipped with lifting platform, leveling unit, deburring unit, tungsten alloy cutting mould and heat exchanger.

    6)  Equipped with laser welder, 1 set welder can match upto 1 or 2 or 3 or 4 sets core winders.

    Technical Datas

    The main parameters:

    1. Min Core ID: 30 mm, Max ID:180 mm

    2. Max core OD: 250 mm

    3. sheet width:10-80mm

    4. Sheet thickness:0.15-0.5mm

    5. air pressure: 7KG

    6. Voltage:380VAC 50/60Hz

    7. Machine weight:1800KG

    8. Welding method: by laser

    Unwinding rack:

    1. Max material OD:1200mm

    2. Expension ID:450-520mm

    3. Max load weight:1000KG

    Laser welding:

    Maximum output power: 200W

    Light output mode: energy fiber (made by Mitsubishi, Japan)

    Installed capacity: 6KW

    Equipment size laser host: 120CM(L)X70CM(W)X100CM(H)

    Water chiller: 70CM(L) X50CM(W)X80CM(H)

    Equipment weight: 380KG

    Water chiller: 100KG

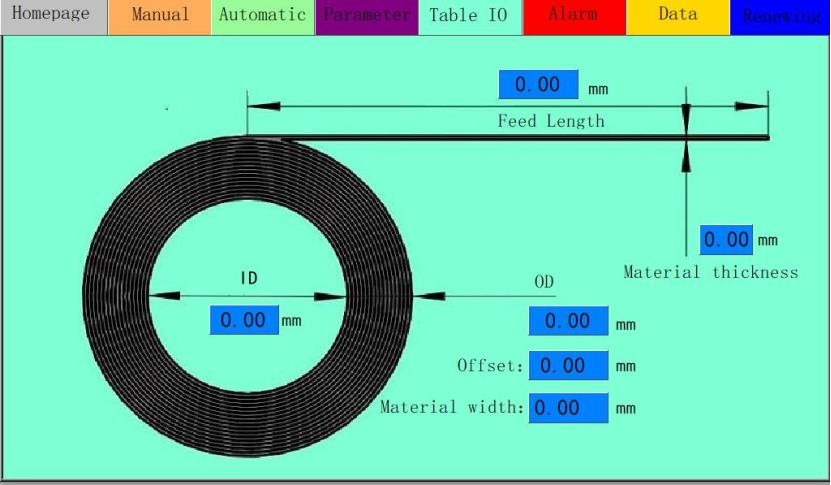

    HMI Touch Screen

    The entire core making process is being monitored by the encoder, includes feeding, clamping, hooking, winding, winding, cutting, welding and pushing. The movement of the sheets can also be tracked. With the help of welding monitoring technology, the product quality is greatly enhanced to reduce failure and waste.

    pro3

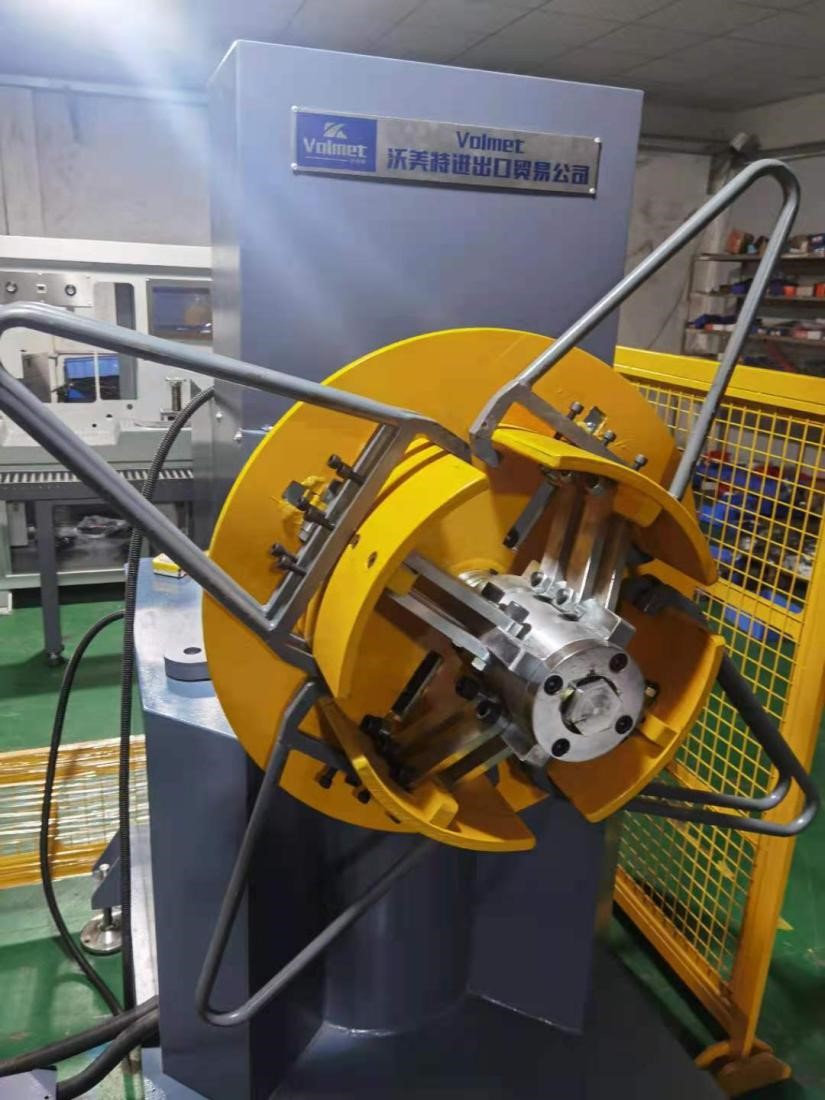

    Decoiler

    The decoiler is made of high quality steel, match the motor from overseas with small noise and high efficiency

    pro4
