VOL-8060-25 Standard type APG press machine

Short Description:

Features:
Plate size:800*600mm to 1000*1200mm
Clamping force:250KN to 400KN

VOL-8060-25 series epoxy resin hydraulic injection machine is made up with:
-1.APG clamping machine frame material:
>Q235# thickness 10mm steel,APG machine more stably;
>release welding internal stress by heat treatment
>Milling each parallel faces by gantry machining center.ensure installation precision,avoid leakage
-2.Power cabinet (Adopt realiable and general electrical elements)
-3.Hydraulic power pack, install on machine,few oil pipe,big clamping force,small oil tank.


Product Detail

Product Tags

VOL-8060 Standard Type APG clamping machine:

vssingliemg
is89g5g544b

Application:

Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.

Application4

Advantages:

-Integrated on machine→ easy installation,the user no need to hard work of connecting oil pipes and wires, just plug in the power supply directly.
→save shipping cost,save factory space.
Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Safe fences→ avoid work injure
Supply technical training→Ensure client make qualified products
Supply complete production line→From machine,mold to raw material,assist client
build production line in shortest time and reasonable cost.

Customized part:
Big clamping force reach:800KN
Supply vacuum chamber between plates

Technical parameters:(offer customize service Max clamping force:800KN)

Model No. VOL-8060-25 VOL-8080-25 VOL-1010-40 VOL-1210-40
Heating plate size 800X600 800X800 1000X1000 1000X1200
Clamping force 250 250 400 400
Speed of clamping close 3.1 3.1 2.7 2.7
Speed of clamping open 4.8 4.8 3.1 3.1
Distance between heating plates 150-1200 200-1500 200-1600 200-1600
Heating power 12 20 24 24
Hydraulic unit power 5.5 5.5 5.5 5.5
Tilting degree 7° X axis,Y axis tilting optional
Machine dimension 3750X970X2570 4500X1020X3730 4805X1220X4260 4805X1220X4260
Machine weight 4300 5350 7700 7700

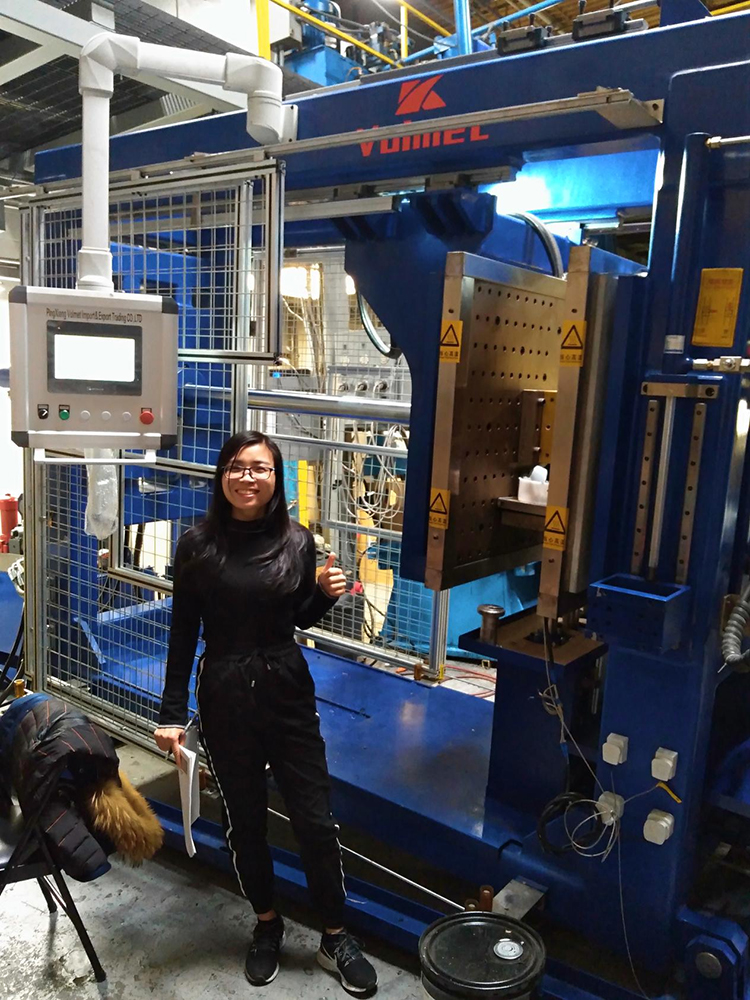

Standard type APG machine at client site&onsite technical training:

We not only produce APG machine and molds,but also offer technical training at site,ensure client produce qualified products.

sinlgiemg45gds (2)
sinlgiemg45gds (1)

onsite technical training in USA company:

After X-ray, tensile test, partial discharge test, leakage test, the product meets customer requirements, and the customer is very satisfied.

s9846r hh
singlie4hsd

Apg injection machine Casting production process:

singlieng

Epoxy resin voltage transformer APG technique training:

 epoxy-resin-voltage-transformer-APG-technique-training

APG press machine production process:

1.Milling machine frame: each side of frame will milled by vertical lathe machine,enasure installation precison,avoid mold leakage.

 2.Heating treatment for machine frame: Do 3 times of heat treatment for machine frame after welding. release inter stress,reduce machine get deformation.

sing1gs
P}`H0`Q``0@H)HWAMB(QT1E

APG press machine delivery process:

After the qualified samples of the equipment and molds are prepared, we will carry out strict packaging to avoid damage to the equipment during transportation and smoothly deliver to the customer.
